GNETEK Factory & Product Overview

Factory tour and product demonstration video.

Company Overview

Jiangsu GNE New Energy Technology Co., Ltd. (brand: GNETEK) was founded in 2013 and is China’s first high-tech enterprise dedicated to solar power optimizers. The company holds a representative position in the PV inverter and component-level power management industry.

GNE focuses on the R&D, manufacturing, and sales of:

  • Power Optimizers (component-level MPPT)
  • Rapid Shutdown Devices (RSD)
  • Hybrid Inverters
  • Component-level Monitoring Systems
  • PV Communication Systems

Products are deployed across 60+ countries including China, Europe, Japan, the USA, Southeast Asia, and Africa. The company holds 50+ invention patents and has shipped over 6 GW of optimized capacity, with 600,000+ optimizer units in the field.

Core Value Proposition

GNETEK’s product philosophy centers on four pillars: Safety, Optimization, Supervision, and Transformation of smart PV systems.

Safety

DC arc faults and high-voltage strings (up to 2000V) are the leading causes of PV fires. GNE optimizers and RSDs provide component-level shutdown within 1 second, eliminating high-voltage risk for installers, maintenance personnel, and firefighters.

Optimization

Component-level MPPT tracking recovers 5-30% of generation lost to shading, dust, module aging, and orientation mismatch. This is especially critical for bifacial and perovskite tandem modules, which suffer 12-18% backside gain loss without optimizers.

Supervision

The Honeypot cloud platform provides real-time per-panel monitoring, instant fault localization, and remote diagnostics — reducing O&M site visits by 60% and cutting hidden losses to under 1%.

Transformation

GNE’s hybrid inverter series integrates PV generation, battery storage, grid interaction, and diesel backup into a single platform — enabling energy independence for homes, businesses, and off-grid sites.

Our Agent Value: Why Not Go Direct?

GNETEK is a specialized Tier-2 manufacturer — not a Tier-1 giant like Huawei or Sungrow. That’s actually an advantage for buyers who need flexibility, but it requires careful due diligence.

How M-Ray Helps:

  • Technical Matchmaking: We assess whether your project actually needs optimizers (not every project does), and if so, which communication protocol — 2.4G, PLC, or HPLC — is right for your inverter brand and site conditions.
  • Inverter Compatibility: GNE optimizers work with most major inverter brands, but protocol matching is critical. We verify compatibility before you order, not after.
  • Consolidated Shipping: Optimizers are small but numerous. We co-pack them with your panels and inverters to minimize dead space and shipping cost.
  • Warranty Escalation: If a GNE optimizer fails in the field, we handle the RMA process with the factory directly — no language barrier, no time zone delays.
Founded
2013
Headquarters
Suzhou, Jiangsu, China
Employees
100+
Patents
50+
Global Markets
60+ countries
Shipped Capacity
6 GW+
Optimizers Deployed
600,000+ units
Production Lines
Full in-house R&D + manufacturing
TÜV
UL
CE
NEC 2017&2020 690.12
UL1741/UL3741
Honeybee Optimizer (1-to-1)
Power Optimizer

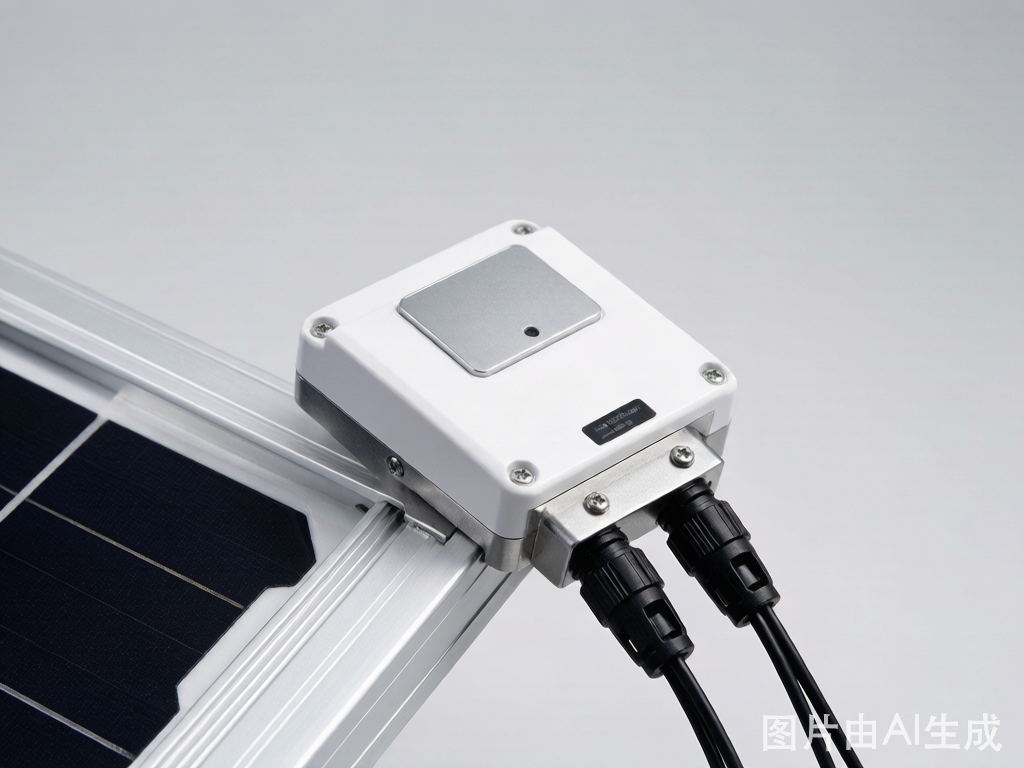

Honeybee Optimizer (1-to-1)

Component-level MPPT tracking — boosts generation 5-30%. Over-voltage / over-current / over-temperature auto-protection. Supports local & remote 1-second shutdown. 25-year design life matching PV modules.

  • Type: 1-to-1 (one optimizer per panel)
  • MPPT: Component-level
  • Generation Boost: 5-30%
  • Shutdown: Local + remote, <1 second
  • Lifespan: 25 years
  • Communication: 2.4G / PLC / HPLC
Honeybee Optimizer (1-to-2)
Power Optimizer

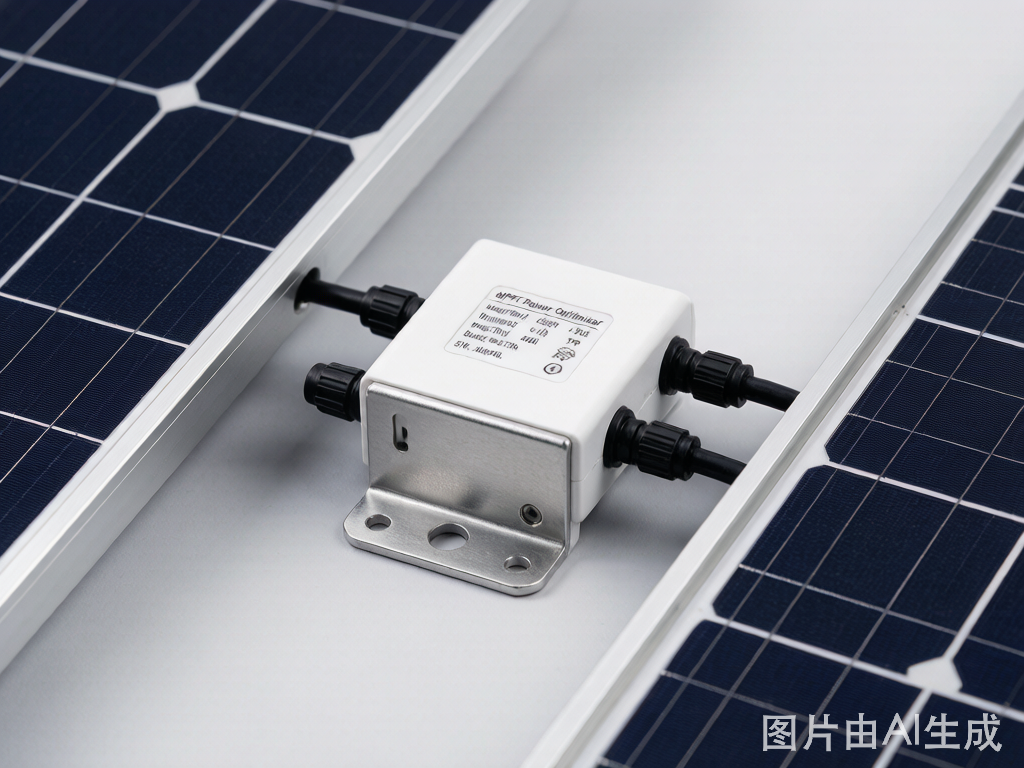

Honeybee Optimizer (1-to-2)

Dual-module optimization — ideal for distributed rooftop systems. Same MPPT, safety, and monitoring features as the 1-to-1 variant, managing two panels per unit for cost efficiency.

  • Type: 1-to-2 (one optimizer per two panels)
  • MPPT: Component-level
  • Generation Boost: 5-30%
  • Communication: 2.4G / PLC / HPLC
  • Lifespan: 25 years
Scoutbee1600M Rapid Shutdown Device
Rapid Shutdown

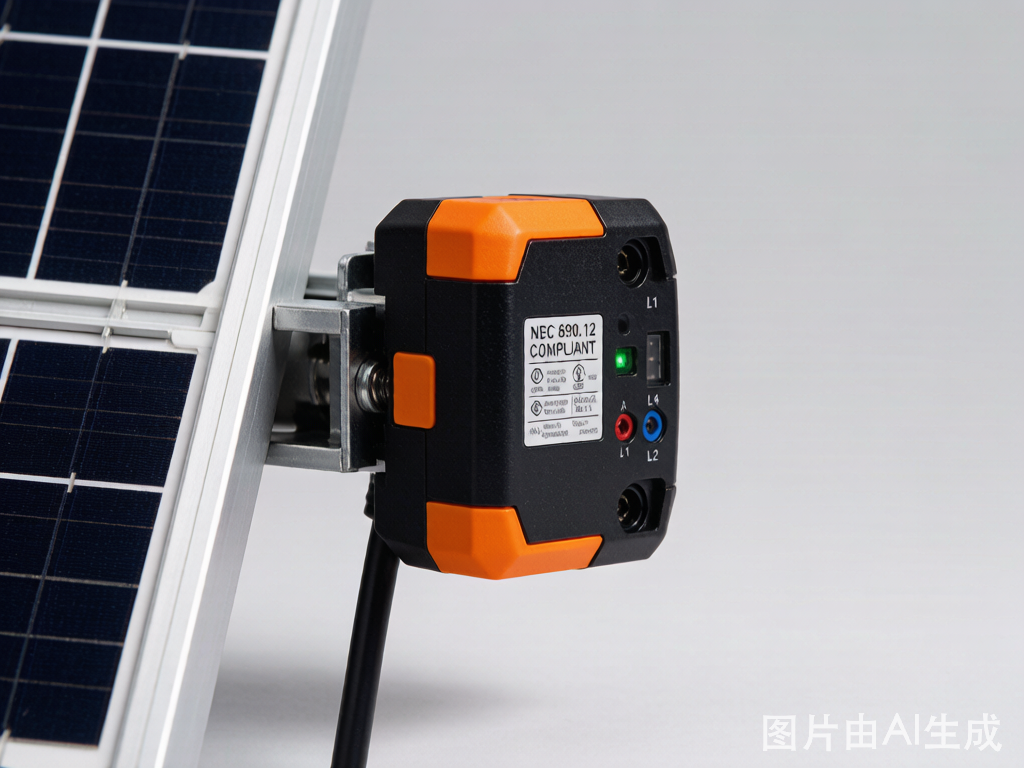

Scoutbee1600M Rapid Shutdown Device

Module-level rapid shutdown compliant with NEC 2017&2020 690.12 and UL1741/UL3741. Default-off for installer safety. Auto-protection on over-voltage / over-current / over-temperature (95°C). 25-year design life.

  • Compliance: NEC 2017&2020 690.12, UL1741/UL3741
  • Shutdown Speed: <1 second, component-level
  • Default State: Off (safe for installers)
  • Temp Protection: Auto-shutdown at 95°C
  • Communication: PLC + wireless
Beetrans-Max-M Shutdown Controller
Shutdown Controller

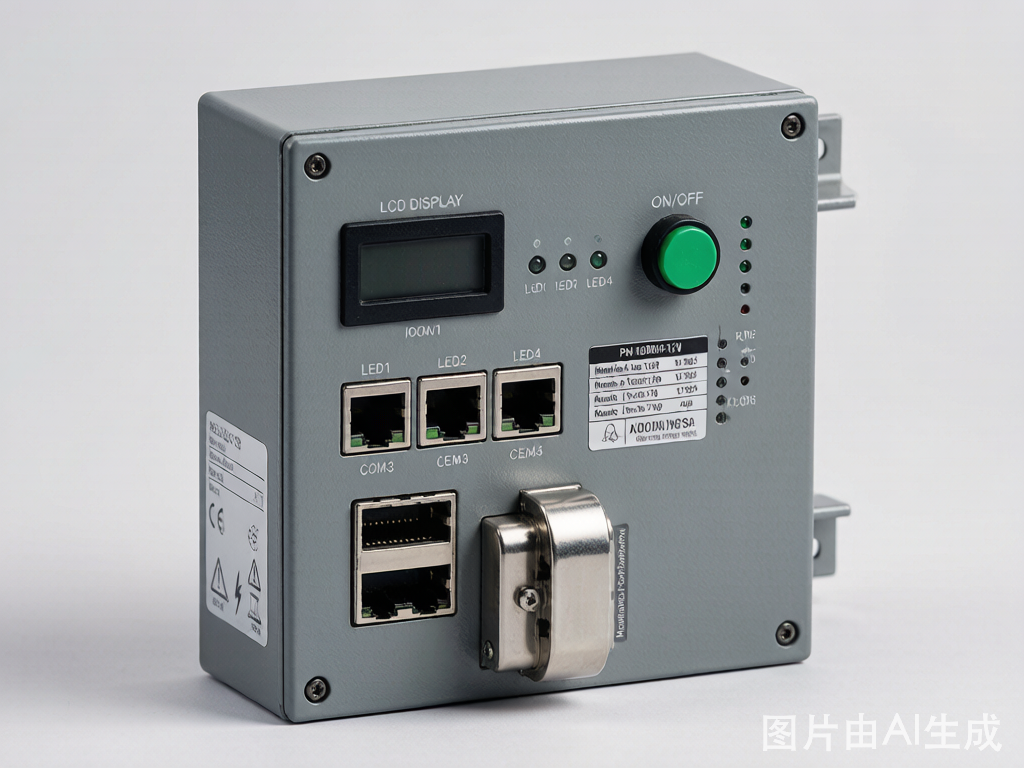

Beetrans-Max-M Shutdown Controller

Pairs with HPLC optimizers/RSDs for component-level monitoring and rapid shutdown. Supports 4 magnetic cores (160A each), up to 500 HPLC devices. Emergency stop button + AC power loss triggers shutdown.

  • Max RSDs: 500 HPLC devices
  • Magnetic Cores: 4 pairs, 160A each
  • Connectivity: LAN / WiFi / 4G
  • Compliance: NEC 2017&2020, UL1741/UL3741
Hybrid Inverter Series
Hybrid Inverter

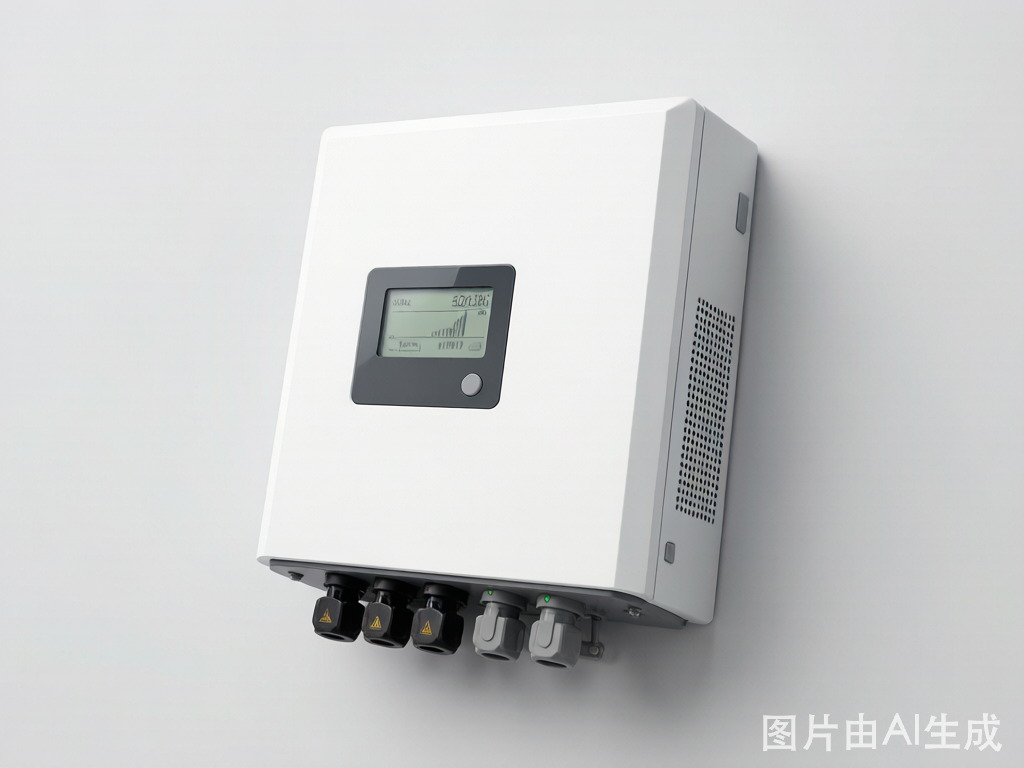

Hybrid Inverter Series

10kW dual-MPPT hybrid inverter for residential, commercial, and light-industrial applications. Supports on-grid, off-grid, and storage modes. 190A charge/discharge. Diesel generator compatible. AC coupling for retrofit.

  • Power Output: 10 kW
  • Peak Efficiency: ≥97%
  • MPPT: Dual-channel
  • Charge/Discharge: 190A max
  • Battery: Li-ion & lead-acid, 48V
  • Parallel: Up to 10 units
  • Protection: IP66+
  • Overload: 1.1x AC, 1.5x DC
Honeypot Monitoring Platform
Monitoring Platform

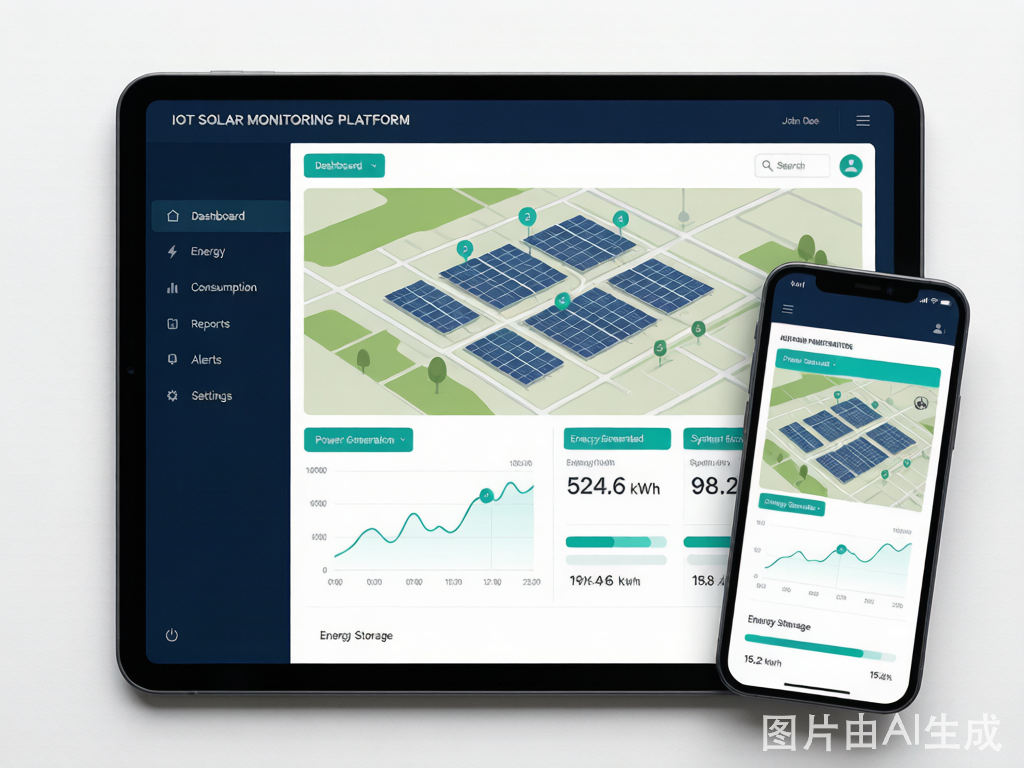

Honeypot Monitoring Platform

Cloud-based IoT monitoring for PV components, hybrid inverters, and batteries. Real-time per-panel data, fault alerts with precise localization, remote shutdown, historical analytics. Available on web, iOS, and Android.

  • Platform: Web + iOS + Android
  • Monitoring: Component-level real-time
  • Alerts: Auto alarm + email/push
  • Remote Control: Shutdown & upgrade
Thailand 5 MW

Thailand Bangkok 5MW Floating PV

16,048 one-to-one optimizers installed on a floating solar power plant.

2018
Laos 14 MW

Laos 14MW Floating PV

22,580 one-to-two optimizers deployed on a large-scale floating photovoltaic station.

2019
China 1.984 MW

Suzhou Green Low-Carbon Industrial Park

4,400 one-to-one optimizers, paired with Huawei 300kW inverters and Astronergy 580W modules.

2024
China 669.9 kW

Schneider Shanghai Minhang Factory

582 one-to-two rapid shutdown devices, Ginlong inverters, Jinko 580W modules.

2024
China 50 MW

Three Gorges Yangzhou 50MW Agri-PV

2,200 one-to-two rapid shutdown devices, Huawei 300kW inverters, Risen 575W modules.

2025
Malaysia Rooftop

Malaysia UKM University Rooftop

44 one-to-two rapid shutdown devices on a university rooftop installation.

2025
