Solar Air Conditioner
Cooling & Heating Powered by the Sun
What Makes It Stand Out
4 operating modes for any power scenario
Top-tier DC inverter compressor & motor
Built-in MPPT solar charge controller
T3 climate rating — operates up to 58°C
Tuya App smart control & energy monitoring
Wide voltage: AC 150-274V + DC 80-380V
One-stop supply: AC + panels + accessories
Works with as few as 2 solar panels

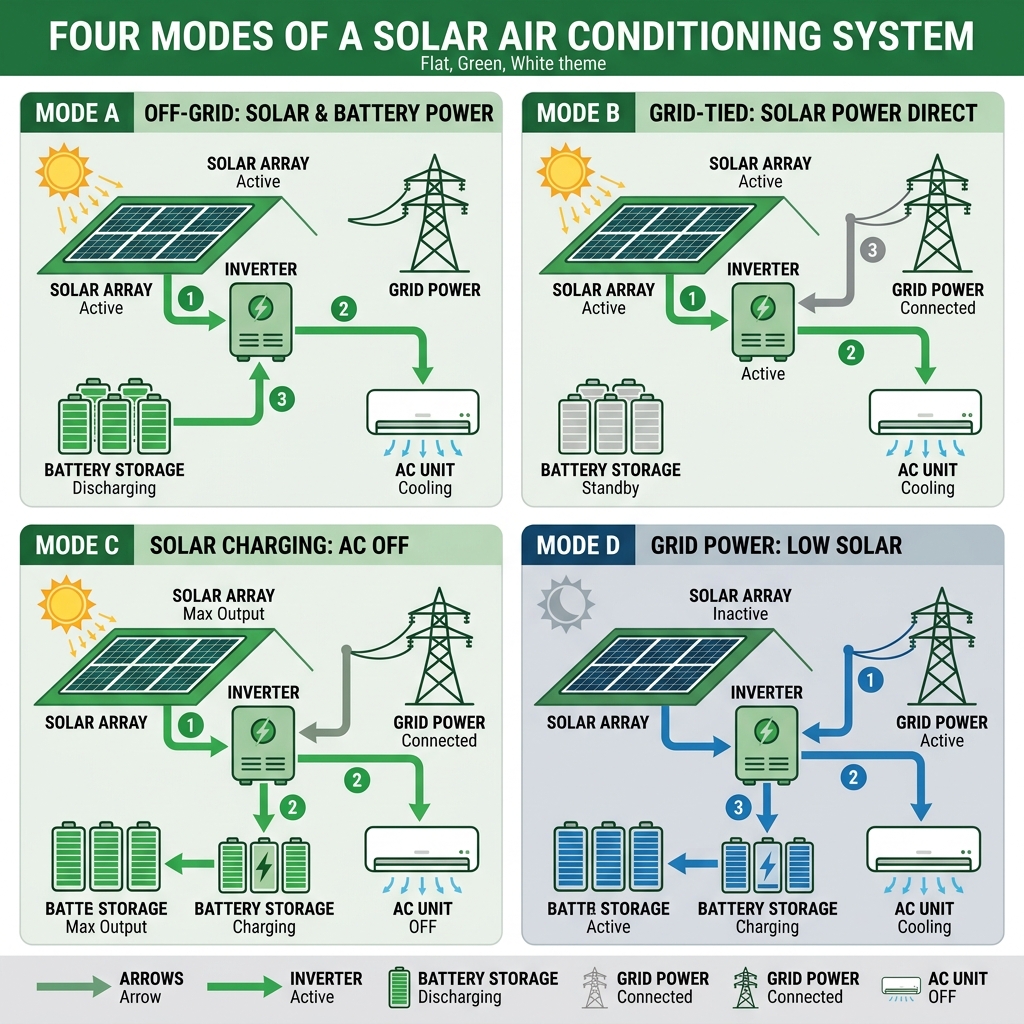

⚡ Four Operating Modes
Our Solar AC supports 4 distinct operating modes, each designed for a different power environment. Choose the mode that fits your project — or offer all four to your customers.

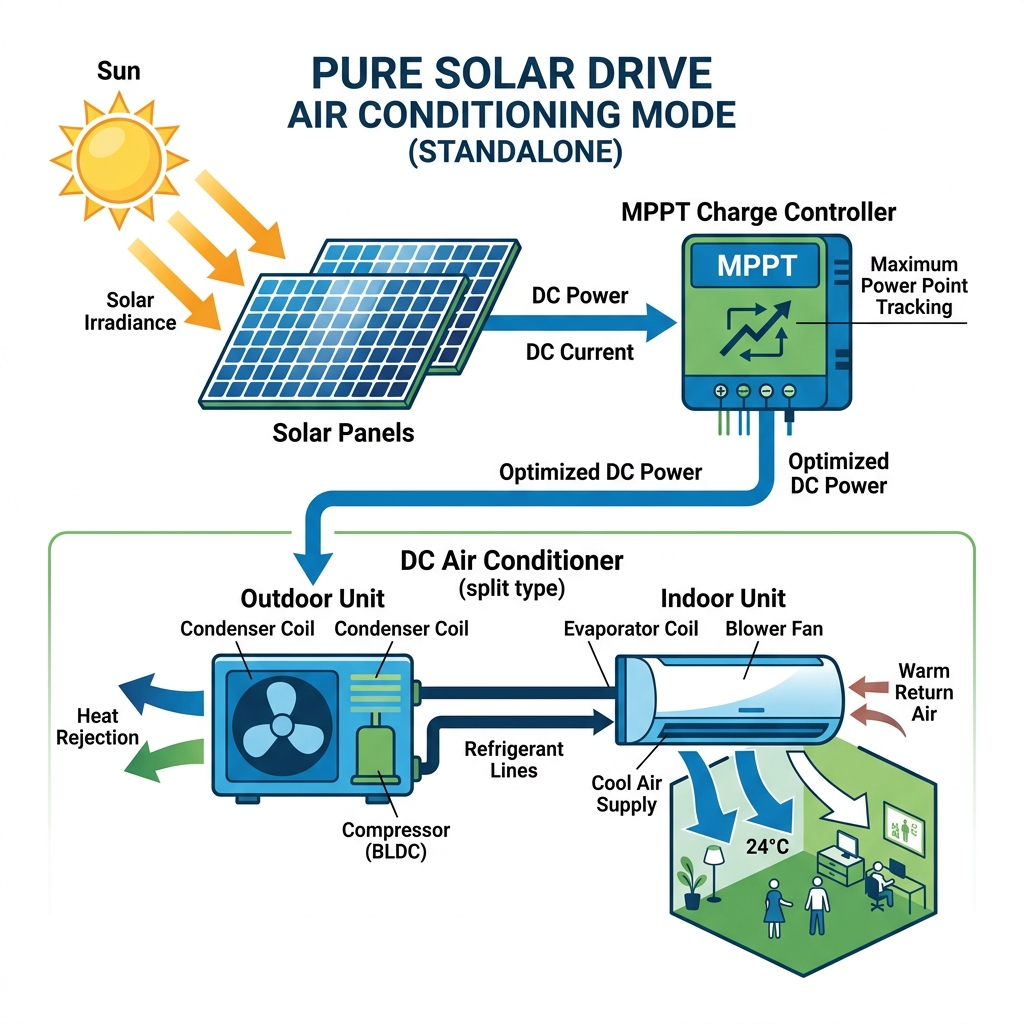

Mode A — Pure Solar Drive
100% solar-powered, zero grid dependency.
The system operates entirely on solar energy via DC power. No AC grid connection required. The compressor frequency adjusts automatically based on available solar power to maintain cooling.
| Capacity | Solar Panels | Total Solar Power |
|---|---|---|
| 9,000 BTU | 2-3 pcs × 550W | 1,100 - 1,650W |
| 12,000 BTU | 3-4 pcs × 550W | 1,650 - 2,200W |
| 18,000 BTU | 4-5 pcs × 550W | 2,200 - 2,750W |
| 24,000 BTU | 5-7 pcs × 550W | 2,750 - 3,850W |
Best for: Remote areas, islands, off-grid sites where no grid power is available.

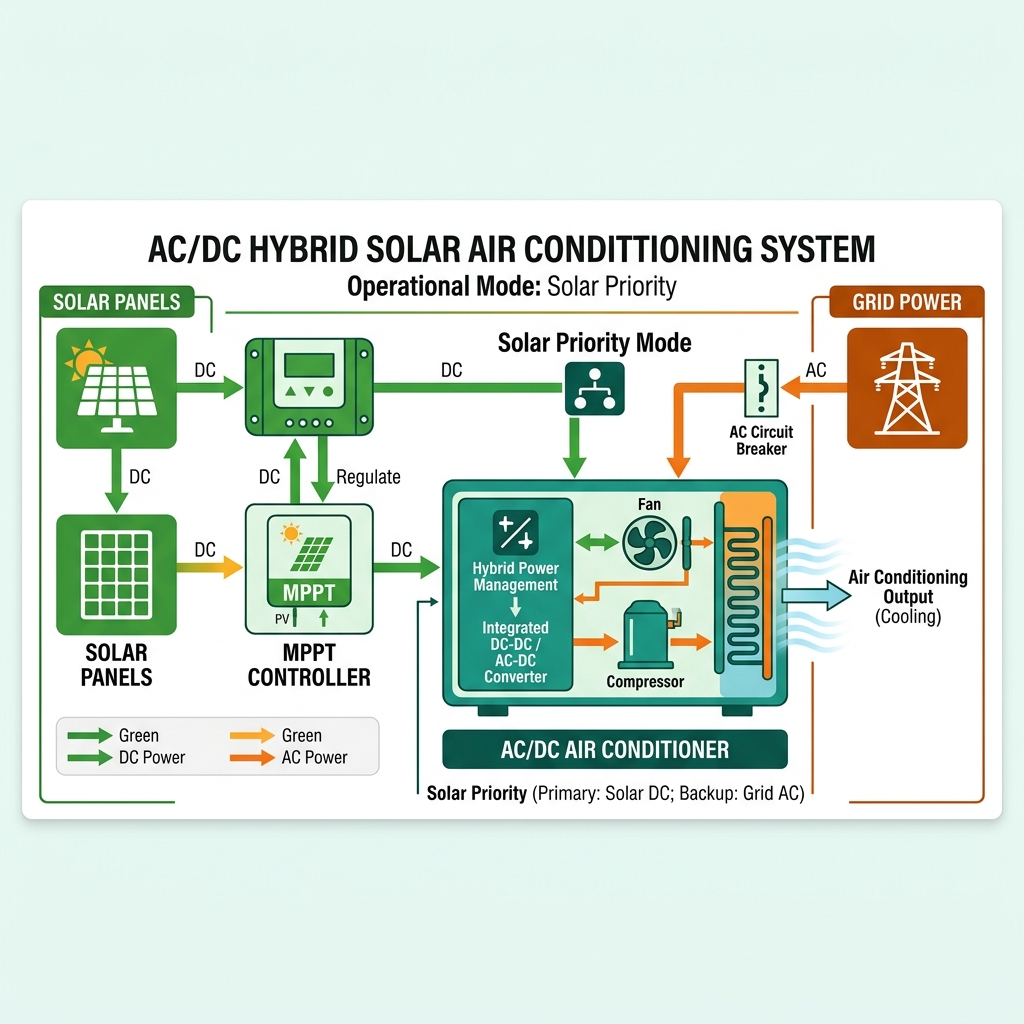

Mode B — AC/DC Hybrid
Solar priority during the day, grid backup at night. Energy saving up to 95%.
Dual power input (AC + DC). Solar energy is prioritized — when solar is sufficient, grid power is not consumed. When solar is insufficient, the system seamlessly switches to grid power.
| Capacity | Solar Panels | Total Solar Power |
|---|---|---|
| 9,000 BTU | 2-3 pcs × 550W | 1,100 - 1,650W |
| 12,000 BTU | 3-4 pcs × 550W | 1,650 - 2,200W |
| 18,000 BTU | 4-5 pcs × 550W | 2,200 - 2,750W |
| 24,000 BTU | 5-7 pcs × 550W | 2,750 - 3,850W |
Best for: Homes, offices, and commercial spaces with grid access but high electricity costs.

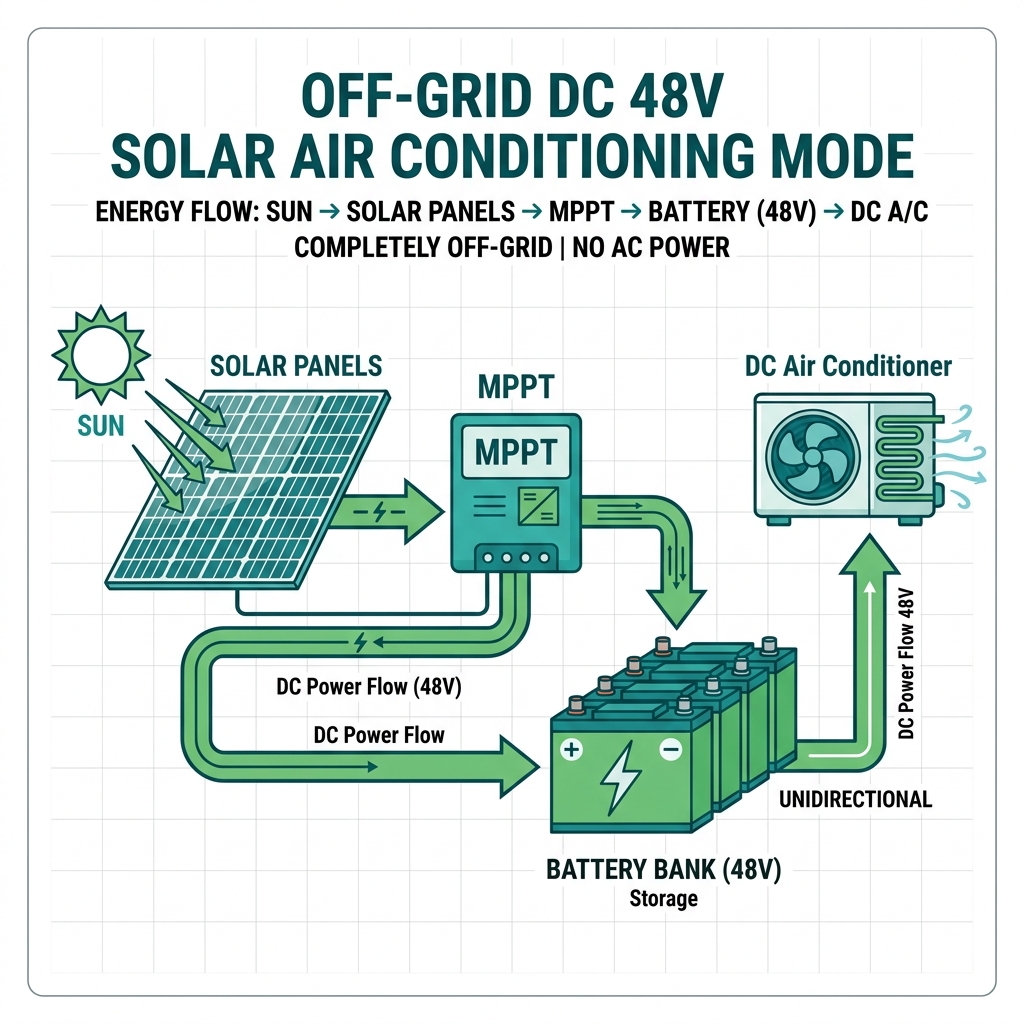

Mode C — Off-Grid DC 24V / 48V
Full DC system with battery storage. 100% green energy, 24-hour operation.
Runs on DC 24V or 48V from solar panels + battery bank. The DC compressor, fan motor, and axial flow motor are all DC — no AC conversion loss, maximum efficiency.
| Capacity | Solar Panels | Battery | MPPT |
|---|---|---|---|
| 9,000 BTU | 2 pcs × 550W | 24V 30A | ✓ |
| 12,000 BTU | 3 pcs × 550W | 48V 40A | ✓ |
| 18,000 BTU | 4 pcs × 550W | 48V 50A | ✓ |
| 24,000 BTU | 5 pcs × 550W | 48V 60A | ✓ |
Best for: Completely off-grid locations, desert camps, island installations, emergency shelters.

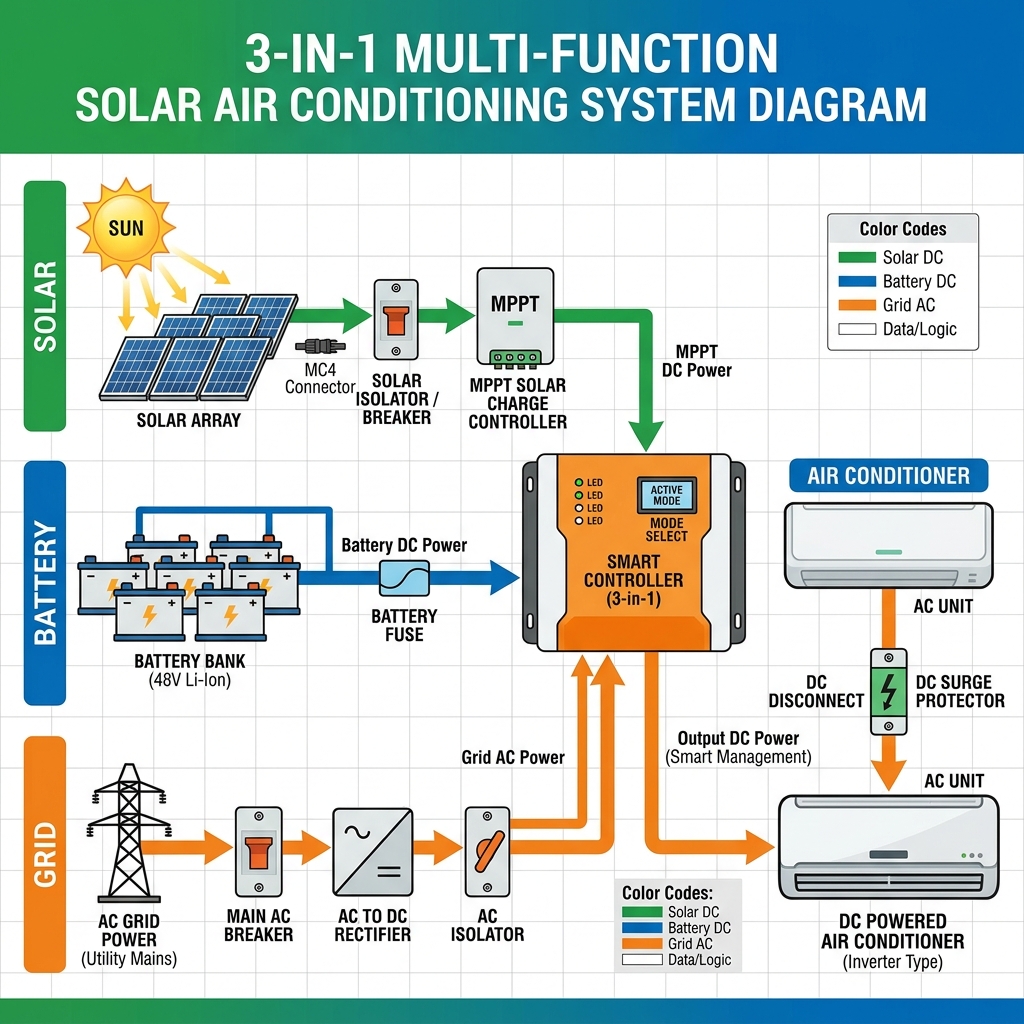

Mode D — 3-in-1 Multi-Function
Solar + Battery + Grid — maximum flexibility, all-day coverage.
The smartest mode. When solar generation exceeds AC consumption, it runs 100% on solar. When solar is insufficient, the battery kicks in. When both solar and battery are depleted, it automatically switches to grid power. Ensures 24-hour uninterrupted cooling.
| Capacity | Solar Panels | Battery | MPPT |
|---|---|---|---|
| 9,000 BTU | 2 pcs × 550W | 12V 100Ah | 48V |
| 12,000 BTU | 3 pcs × 550W | 12V 150Ah | 48V 40A |
| 18,000 BTU | 4 pcs × 550W | 12V 250Ah | 48V 50A |
| 24,000 BTU | 5 pcs × 550W | 12V 250Ah | 48V 60A |
Best for: Projects requiring 24/7 reliable cooling with maximum energy savings.
🎯 Three Application Scenarios

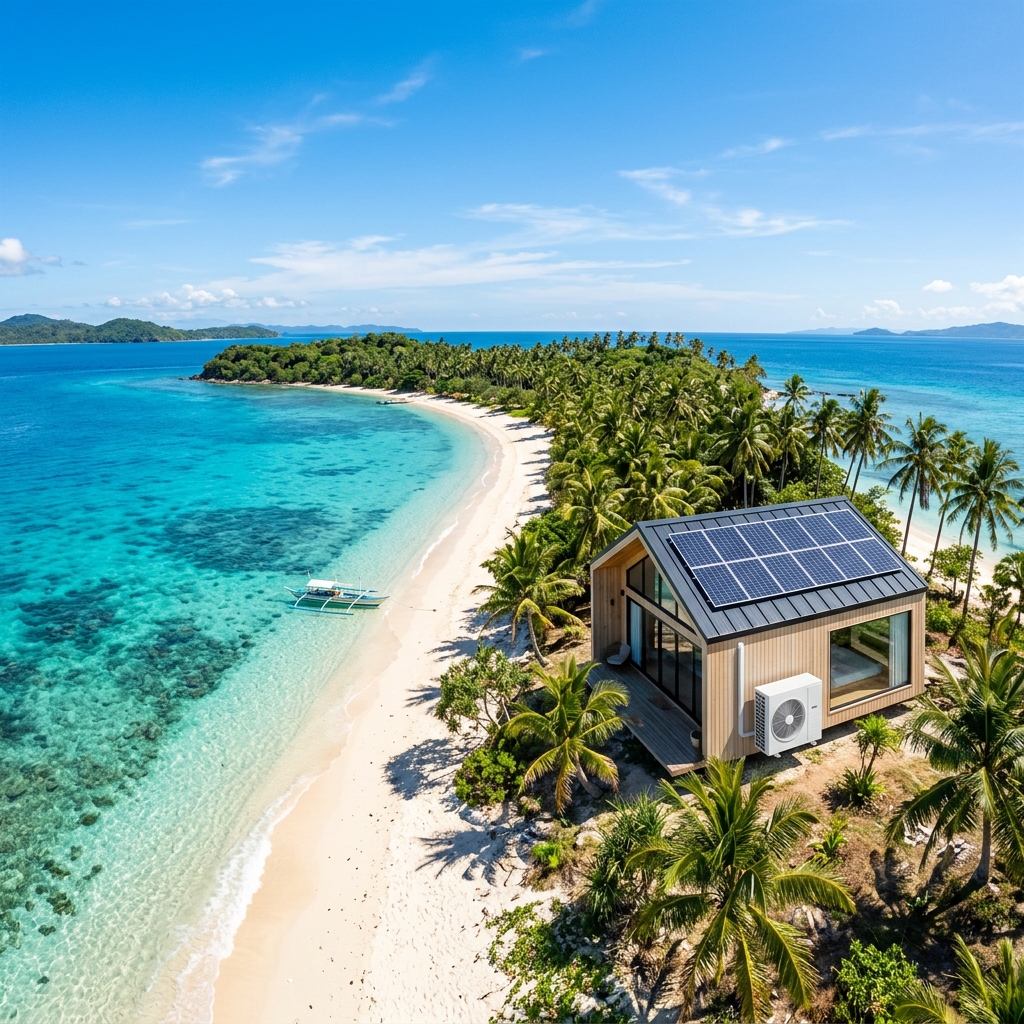

1. Unstable or No Power Supply
Islands, deserts, remote areas, post-disaster zones
Where grid power is unreliable or nonexistent, our Solar AC provides comfortable cooling and heating powered entirely by the sun.

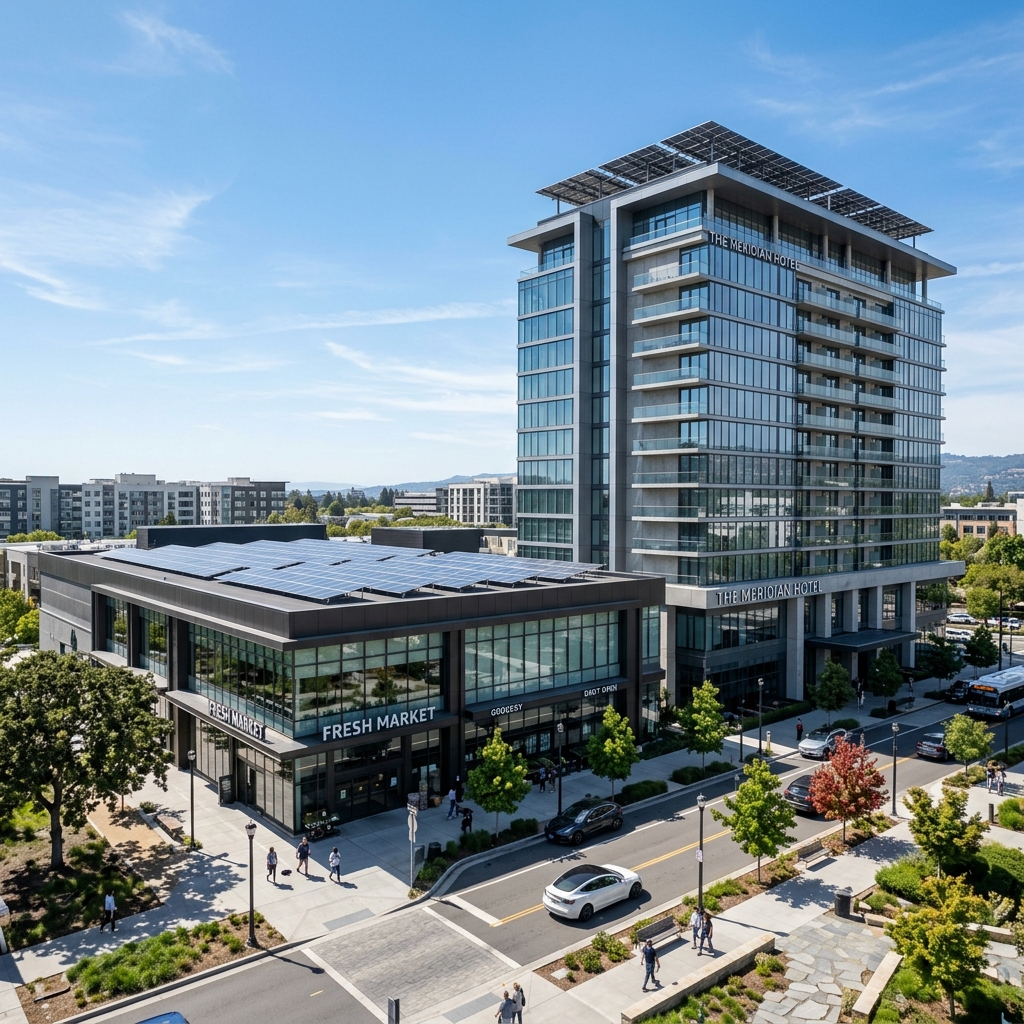

2. High Electricity Costs
Supermarkets, hotels, hospitals, telecom base stations, farms
In regions where electricity prices are high, solar AC dramatically reduces operating costs — with a typical payback period of just 1 year.

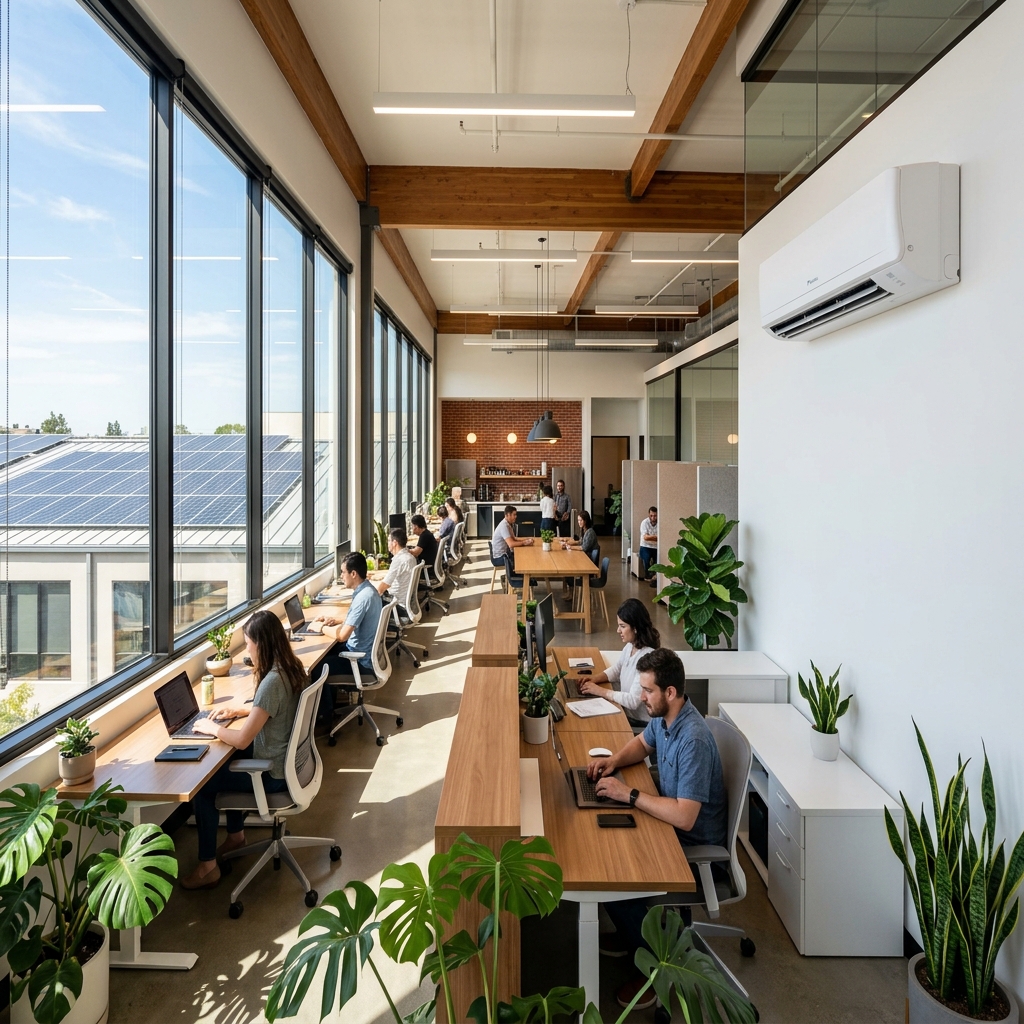

3. Daytime Cooling Demand
Offices, schools, factories, telecom stations
Most cooling demand occurs during peak sunlight hours. Solar AC converts this natural alignment into maximum savings — the sun powers the cooling when you need it most.
🔧 Core Technology

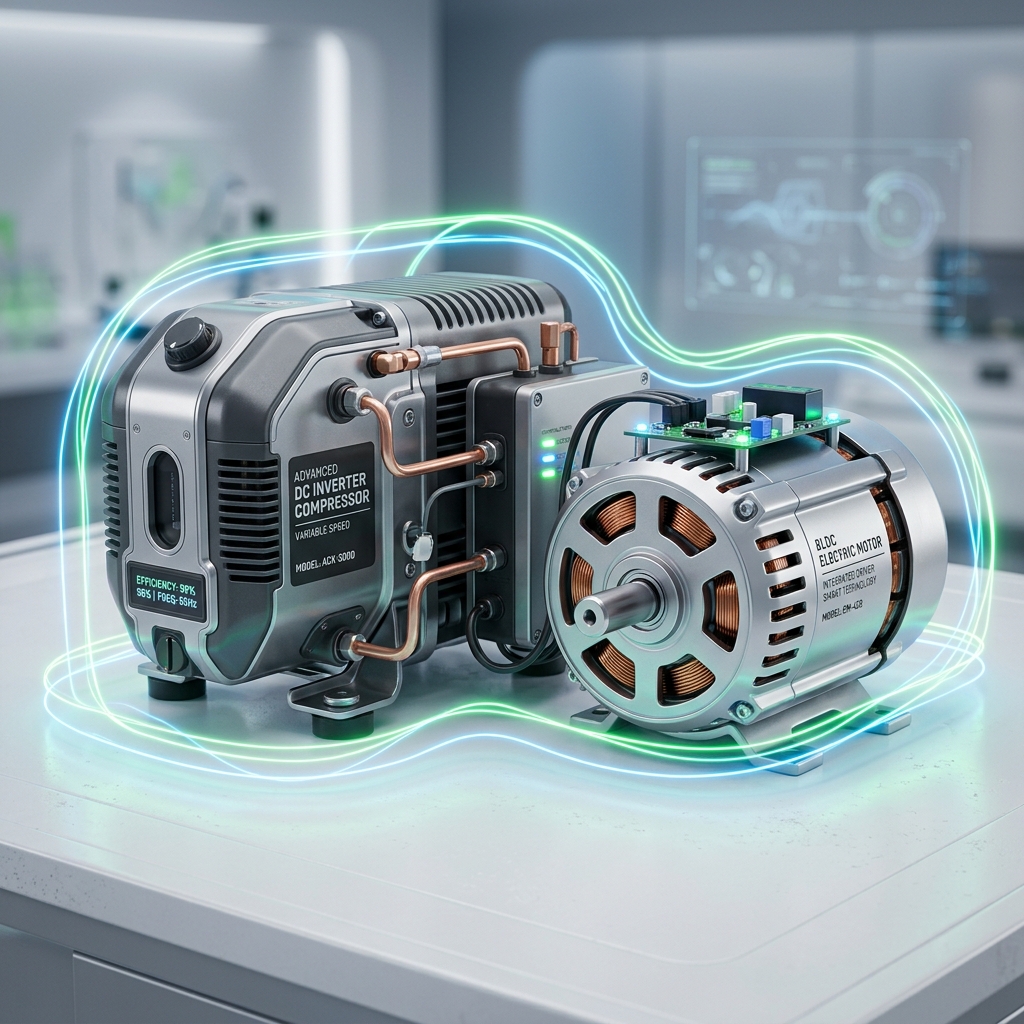

DC Inverter Compressor
World-leading brand compressor. Our full DC frequency conversion technology achieves power consumption as low as 100W under low-frequency operation — equivalent to a refrigerator.

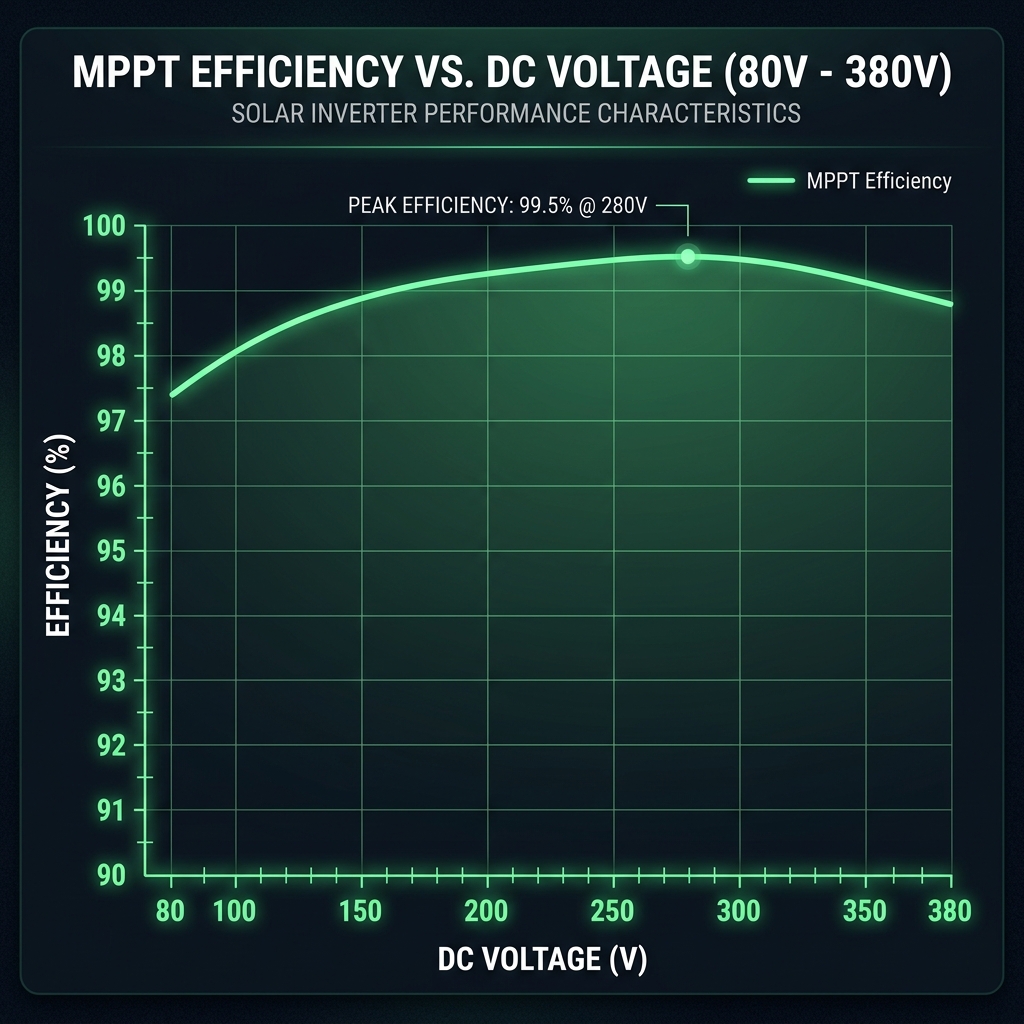

Built-in MPPT Solar Controller
Maximum Power Point Tracking technology optimizes solar panel output in real time. DC 80V - 380V wide input range. 10+ year lifespan with zero conversion loss.
T3 Extreme Climate Rating
Certified for stable operation at ambient temperatures up to 58°C. Designed for the world’s hottest regions — Middle East, Africa, Southeast Asia.
Premium Components
| Component | Brand / Spec |
|---|---|
| Compressor | Top-tier brand (rotary type) |
| DSP Main Chip | Texas Instruments (TI) |
| IGBT | STMicroelectronics / Infineon |
| Motor | Welling / Tier-1 brand |
| Four-way Valve | Sanhua |
| Heat Exchanger | Double-row copper tubes (20U) |
| Fins | Gold-plated aluminum stamping |
Wide Voltage Range
- AC input: 150V - 274V
- DC input: 80V - 380V
- Operates with as few as 2 solar panels
📊 Energy Savings & ROI
Annual Electricity Savings
| Model | Annual Savings (kWh) | Annual Cost Saved* | Payback Period |
|---|---|---|---|
| 9,000 BTU | 2,160 kWh | $679 | ~1 year |
| 12,000 BTU | 2,592 kWh | $815 | ~1 year |
| 18,000 BTU | 3,456 kWh | $1,066 | ~1 year |
| 24,000 BTU | 4,320 kWh | $1,358 | ~1 year |
| 30,000 BTU | 5,400 kWh | $1,698 | ~1 year |
| 36,000 BTU | 6,480 kWh | $2,037 | ~1 year |
Based on electricity price of $0.357/kWh. Actual savings vary by region and usage.
2-Year Cost Comparison: Solar AC vs Normal AC
Over a 2-year period, cumulative savings of approximately $1,507 — enough to pay for the entire solar AC system. After year 2, every dollar saved is pure profit.
Carbon Emission Reduction
Each solar AC unit reduces CO₂ emissions by 1.7 - 5.0 tons per year, equivalent to planting 2.6 - 7.7 trees annually.

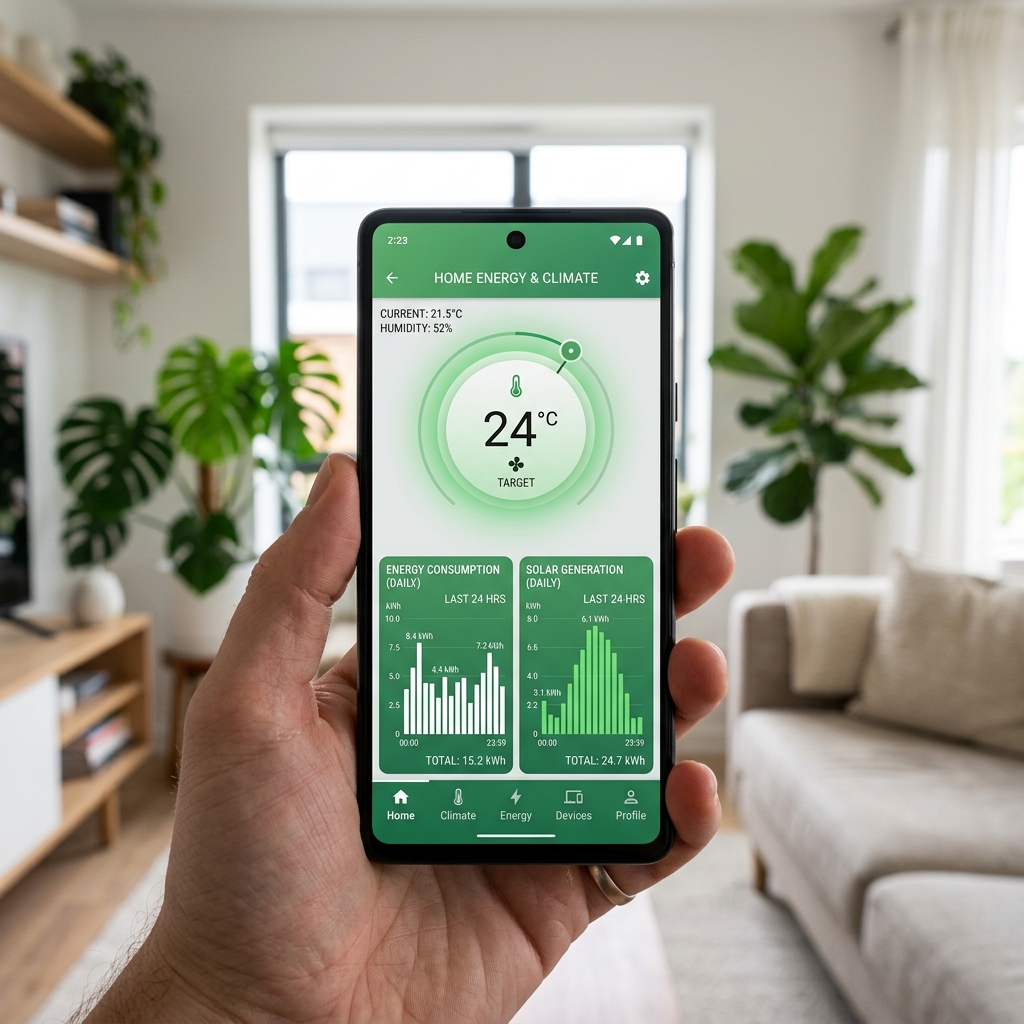

📱 Tuya Smart Control
Control your Solar AC from anywhere with the Tuya App (available worldwide on iOS & Android).
- Remote Control — Turn on/off, adjust temperature, switch modes from your phone
- Energy Monitoring — Track solar vs. grid power consumption in real time
- Smart Scheduling — Set timers and weekly schedules for automated operation
- Energy Statistics — View daily, weekly, and monthly energy-saving reports
- Multi-language — App automatically follows your phone’s system language

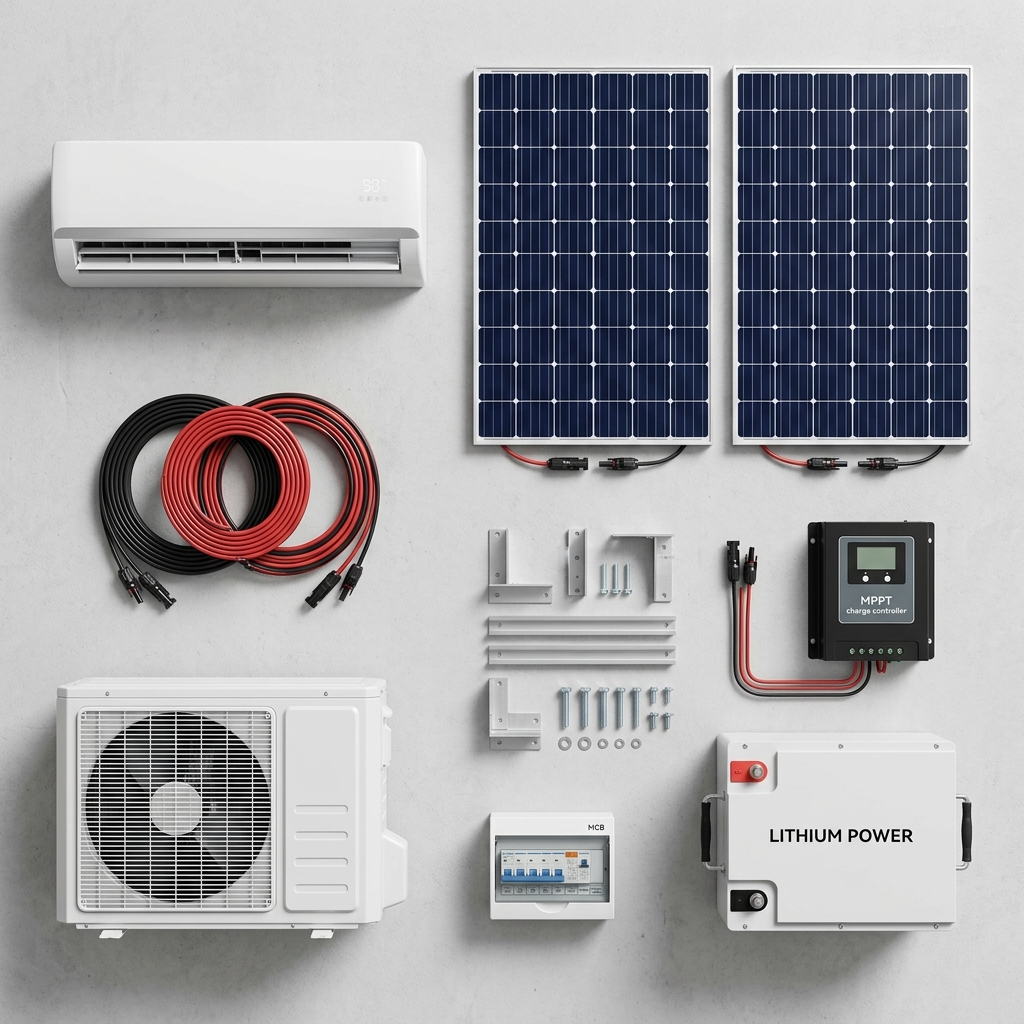

📦 System Components
Main Components
| Part | Description |
|---|---|
| Solar Air Conditioner | Indoor + outdoor unit (split type) |
| Solar Panels | Monocrystalline 550W (quantity varies by model) |
| MPPT Controller / EHUB | Power management unit (built-in or external by mode) |
Optional Accessories
| Accessory | Description |
|---|---|
| Battery | Lithium / Lead-acid (for Mode C & D) |
| Solar Panel Bracket | Roof or ground mounting frame |
| MC4 Connectors | Solar cable quick connectors |
| Breaker | Circuit protection |
| Battery Cable | Connection cables for battery bank |

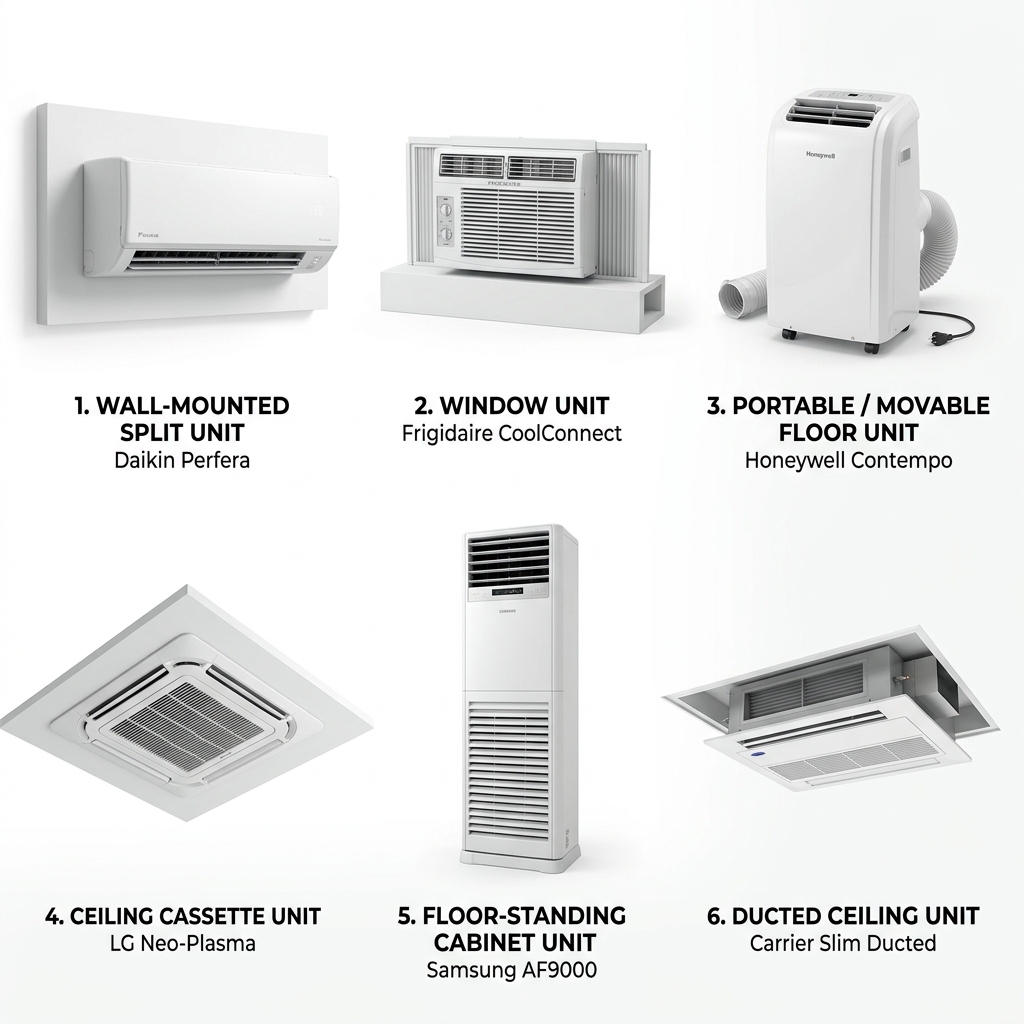

Available Indoor Unit Styles
- Split Type: Wall-mounted, Ceiling, Air Duct, Back Hanging
- Integrated Type: Movable, Window, Ceiling, Roof, Standing
✅ Product Quality & Service

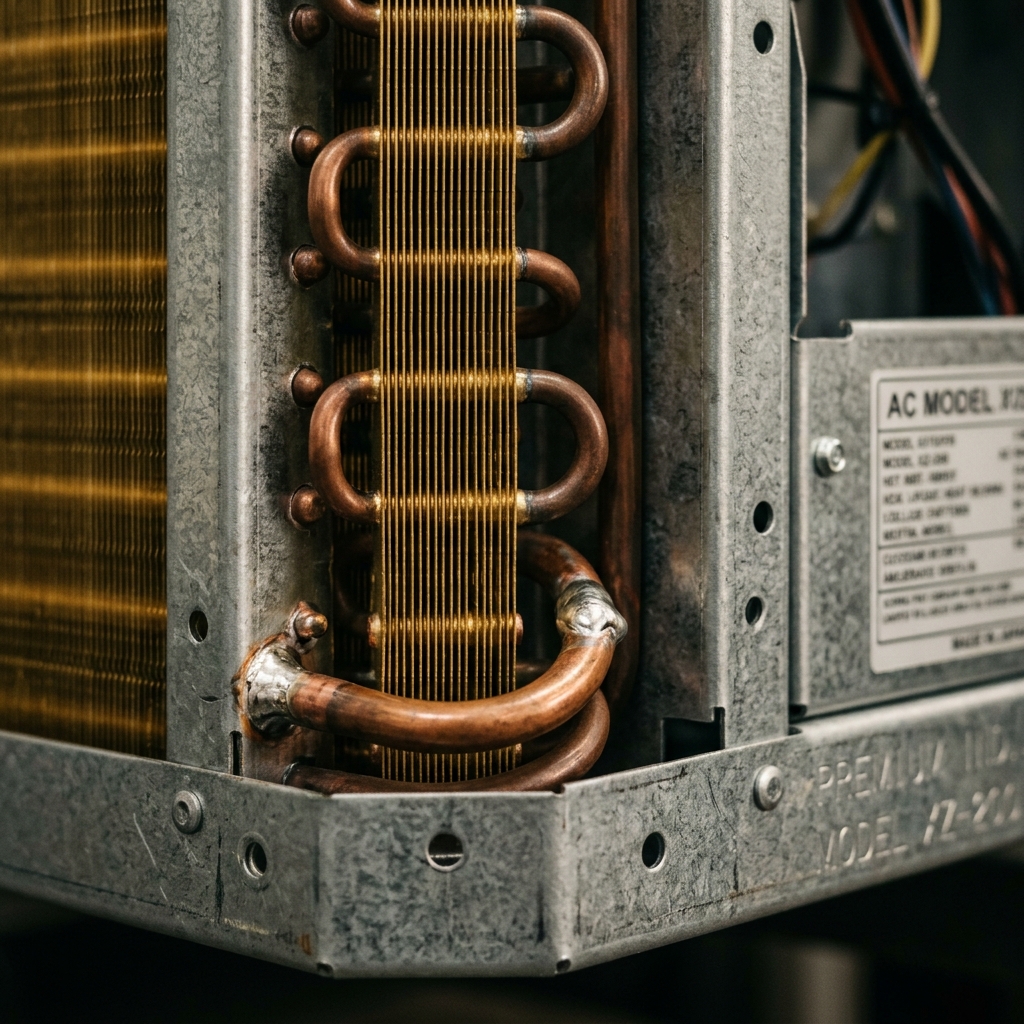

Build Quality
- Outdoor unit: Full and sturdy structure, thick materials, 27.5 kg (vs. competitors at 23 kg)
- Heat exchanger: Double-row copper tubes (20U, L: 780mm × Ø8mm)
- Fins: Gold-plated aluminum stamping for higher heat dissipation
- Housing: High-strength galvanized material with strict anti-corrosion treatment, offering longer service life even in seaside installations
- Failure rate: Extremely low — less than 0.1% refrigerant leakage rate
OEM / ODM & One-Stop Supply
- OEM / ODM: Custom branding, packaging, and product specifications available
- Complete system supply: AC unit + solar panels + MPPT controller + batteries + all accessories — sourced and shipped together
- Installation support: Detailed video guidance and wiring diagrams provided
- Easy to install: Same process as a standard household air conditioner

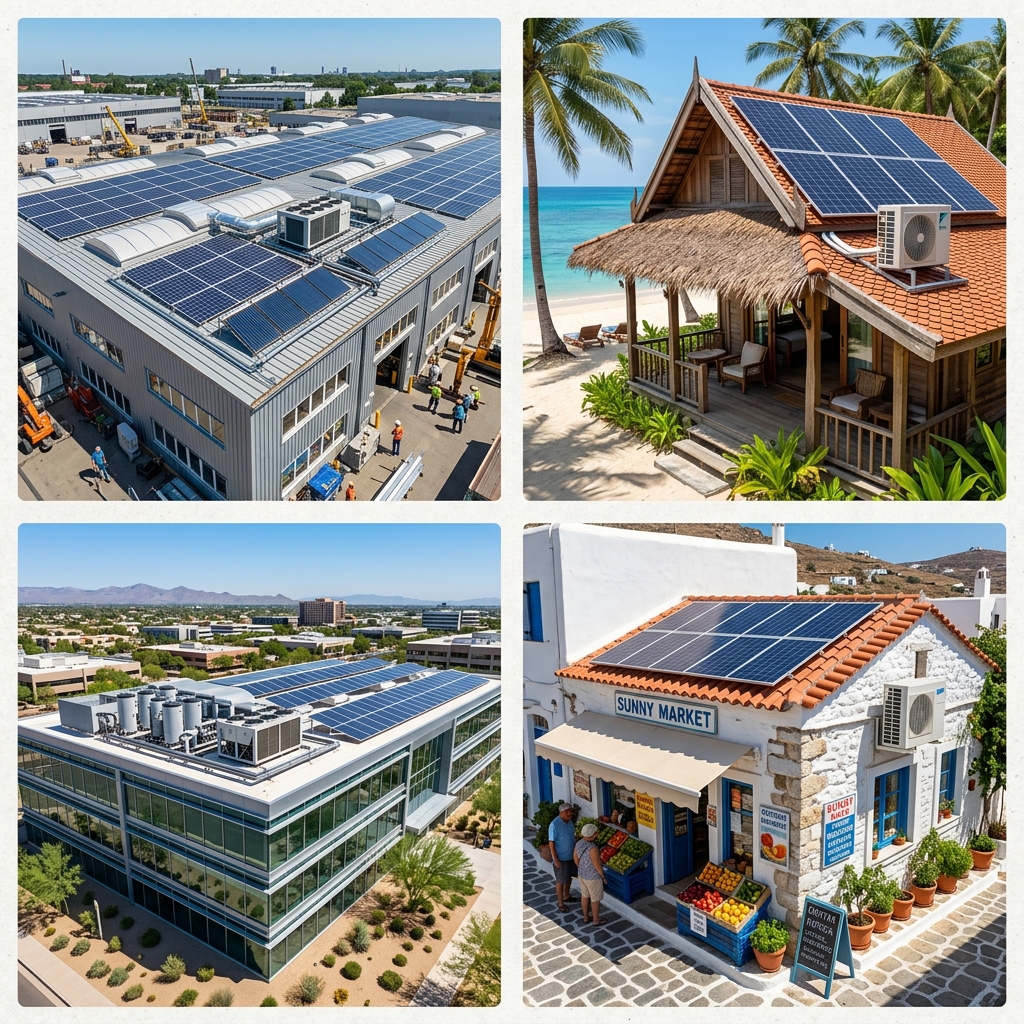

🌍 Installation Cases
Our Solar AC systems are operating successfully across the globe:
| Location | Application |
|---|---|
| 🇮🇩 Indonesia | Large shoe factory in Cirebon |
| 🇵🇭 Philippines | Residential family home |
| 🇹🇭 Thailand | Office building |
| 🇲🇻 Maldives | Retail shop |
| 🇩🇿 Algeria | Petroleum equipment workshop |
| 🇸🇬 Singapore | Container facility |
| 🇨🇳 China | Telecom base station, data center, cement plant, grain depot |
❓ FAQ
How many solar panels do I need? It depends on the BTU capacity and operating mode. As few as 2 panels for a 9,000 BTU unit. See the configuration tables above for each mode.
Can it work without any grid power? Yes. Mode A (Pure Solar) and Mode C (Off-Grid DC) operate 100% without grid power.
What happens on cloudy days or at night? In Mode B (Hybrid), it automatically switches to grid power. In Mode D (3-in-1), the battery provides power first, then grid as backup. In Mode A, the compressor adjusts frequency based on available solar power.
Does it support both cooling and heating? Yes. All models support both cooling and heating via heat pump technology.
What is the operating temperature range? -15°C to +58°C. T3 climate rating certified for extreme heat regions.
What app do I use to control it? The Tuya App, available for free on iOS and Android worldwide. It follows your phone’s system language automatically.
